Bulk solar purchase pays off for off-grid house in rural NSW

A group purchase of solar power cut individual prices for members of the group.

This guest blog is from Ian McCaig, an architect, who, with his partner, Liz, purchased a solar PV system as part of a group so they could reduce individual prices by 15%.  Here is Ian's story.

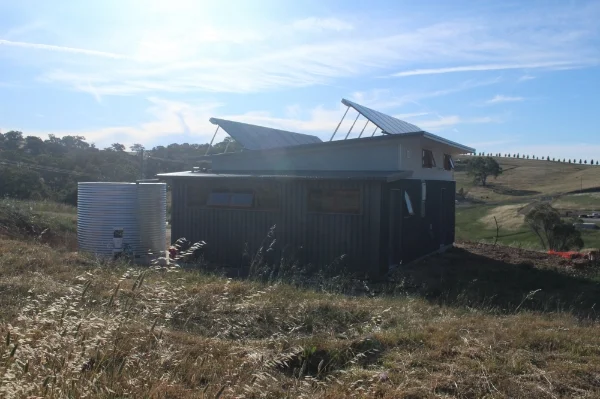

 Solar panels on the garage

Solar panels on the garage

We are building a new home on a 5 acre rural residential block 15km NW of Orange on the Central Tablelands of NSW. The house has been designed using passive solar design principles – good orientation,  insulated thermal mass, double glazing, shading. The garage, a free standing structure with a bathroom & kitchenette was completed in October 2015, giving us somewhere to stay when we visit. Construction of the house has now commenced.

Grid power is available to the property – an 11,000V line runs in an easement on the western side of our property.

A number of things contributed to our decision to go off grid for power (we had no choice for water & sewer).

We always intended to install a photovoltaic system, with a view to generating most if not all of our electricity requirements on site. With high daily average sunshine, Australia is ideally placed to utilise solar technology for power generation; generating power it where it is going to be used seems obvious.

The feed in tariff paid by the local electricity retailers is around 5c / kWh, the electricity you generate is then sold back to you at night for 29c / kWh. Even if we fed our total energy production back into the grid at these rates, the feed in tariff would not cover the daily service availability charge. It makes sense to store the electricity we generate, rather than selling it to the energy retailers.

The connection point to the grid for our block had been located so as to be convenient to serve the adjoining block, but entailed a 190m cable run to the location of our house, a cost of $10,700.00 to connect.

Taking these factors into account, we decided to go off-grid for power.

We participated in a bulk buy project initiated by Michael Mobbs, and although it was disappointing that the 30 buyers required to deliver the maximum benefit to participants was not achieved, we were able to obtain a significant discount on the purchase and installation of our system. We decided to proceed with the supplier chosen from the tender process conducted as part of the bulk buy project, Off Grid Energy. (See the guest blog by Casey van Reyk who ran the bulk buy project.)

We filled in a questionnaire listing all of our electrical devices, their power consumption and estimated daily operating hours, Off Grid Energy then used this data to model our projected daily energy usage and to design a system to suit. One limitation was that our garage roof could only accommodate 16 panels, although the modelling suggested that we may need more to satisfy demand during winter.

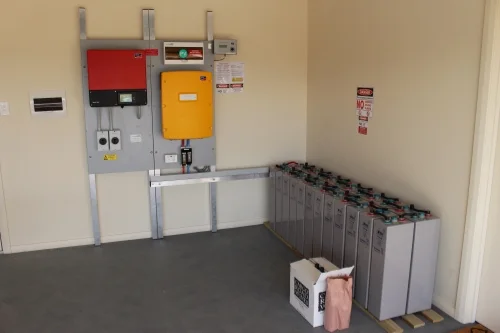

 Inverter on walls, lead acid batteries on floor

Inverter on walls, lead acid batteries on floor

The system installed consists of 16 Tindo Karra multicrystalline solar panels (4.16kW total), an SMA SB-5000TL solar MPPT inverter, 24 BAE sealed gel batteries and an SMA S18.0 Sunny Island inverter / charger. We also have a Honda 5.5kva generator as a backup, it has not been used as yet.

Installation was completed late in November 2015. As we only occupy the garage for short periods, we have not taxed the system at all – even with cooking using electric hotplate and running lights, fridge, water pump, TV etc, we have not seen the batteries go below 94% charge. On a sunny morning the system is usually back to 100% by 10:00 am. We can’t currently use the power that the system is capable of producing. Our aerated sewer treatment system is due to be plugged in soon – it will be interesting to see the impact this has.

With the house under construction, the builders are using various power tools – brick saw, angle grinder, cement mixer, all running straight from the solar panels & inverter – very satisfying.

When the house is completed at the end of the year, we will closely monitor the performance of the system to see if we need to add more panels.
